      How do I set my Unitech Android Scanner to fire the laser automatically or continuously?

      A guide to the different scan mode s for the laser scanner on your Unitech EA660, PA768 or RT112

      This article only applies to the following devices:

      • Unitech EA660
      • Unitech PA768
      • Unitech RT112

      Open the Unitech Scan Service app

      Swipe up on the home screen to open the app drawer.

      Click on the USS Profile app icon.

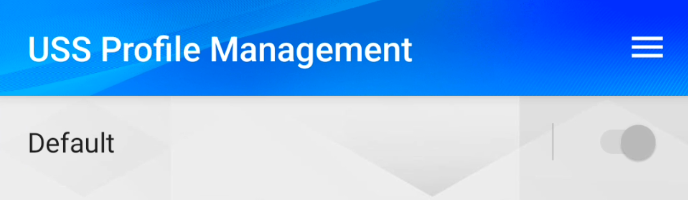

      You will be presented with a Unitech Scanner Service Profile Management screen.

      Tap on the Default profile to edit the default profile for your device.

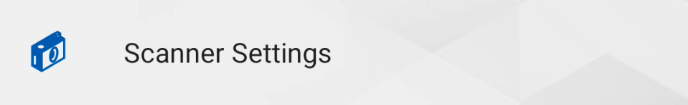

      Then tap on the Scanner Settings menu in the default profile.

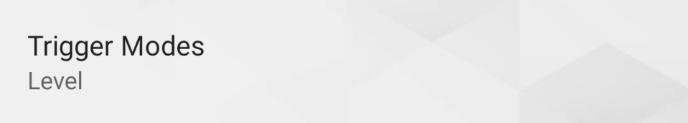

      Next, tap on the Trigger Modes menu under scanner settings.

      Select a firing mode

      Select the firing mode for the embedded laser scanner.

      Please read the descriptions of each mode carefully before selecting based on the name.

      Mode Description
      Level

      Fire the laser once while the button is pressed.

      The laser will deactivate after an ID has been read or the button is released.

      Continuous Mode

      Fire the laser continuously* while the button is pressed.

      The laser will continue to fire even after an ID has been read or the button is released.

      Auto Aim

      Not compatible with VeriScan.

      Presentation Mode

      Fire the laser continuously* while the screen is on.

      The laser will continue to fire even after an ID has been read.

      Pressing the button does not interfere with the laser.

      Read on Second Scan

      Pressing the button once turns on the alignment guide.

      Pressing the button a second time fires the laser.

      The laser will continue to fire until an ID has been read or the button is released.

      Press and Continue

      Fire the laser continuously* after pressing the button once.

      The laser will deactivate after the button is pressed again.
      *Note: There is a ~3 second delay between scans, so make sure to move the ID out of the way before time is up or you might get a duplicate scan.
