How do I configure XML output for the Teller menu?
Guide to setting up the XML output for tellers.
Configuration
Profile Editor

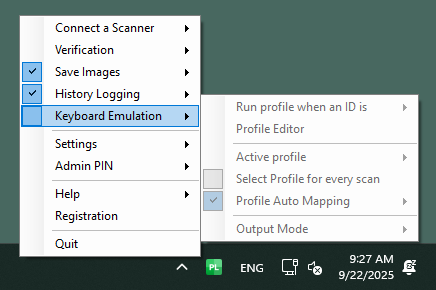

- Go to Right Click Menu > Profile Editor

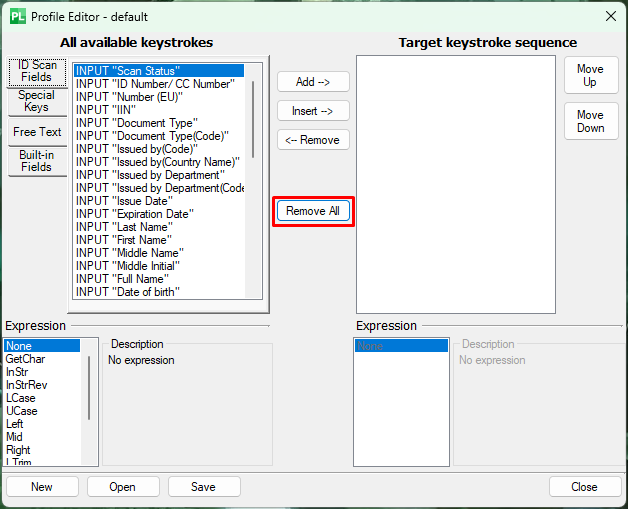

Click the Remove All button to remove all items from the Default Profile's target keystroke sequence. Click the Save button to save the default profile with no keystrokes - they're not needed when saving to XML.
Image Settings
First navigate to the Image Reader Settings menu to configure which images to save.

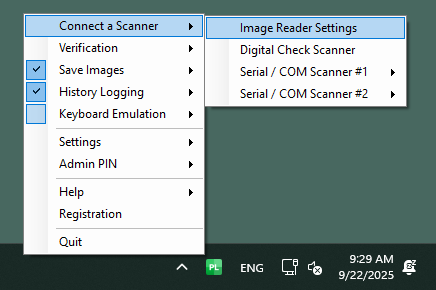

- Go to Right Click Menu > Image Scanning > Image Reader Settings

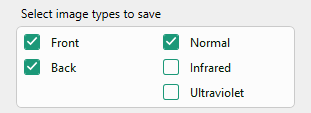

Enable the checkboxes for Front and Back of the ID as well as the Normal checkbox.

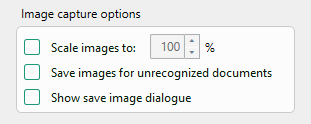

You can disable the Show save image dialogue checkbox if you don't want to look at the scans before the XML and images are saved.
Click the OK button.

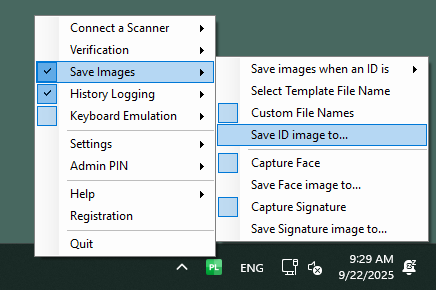

- Next, go to Right Click Menu > Image Scanning > Save ID Image To...

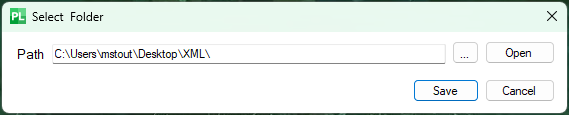

Use the Select Folder path to the location you want to store the images and XML.
Authentication Report Settings
If you're using the Authentication SDK and you want to save the Authentication report, you can configure the report to save automatically with the XML as well.

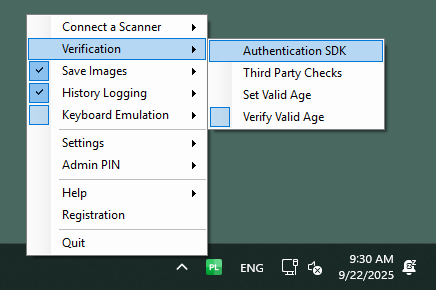

- Go to Right Click Menu > Settings > Authentication Settings

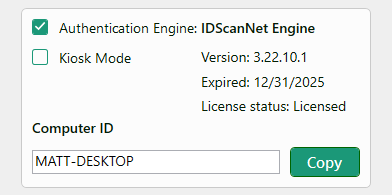

Enable the Authentication Engine if it's installed.

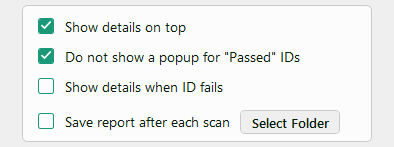

Disable the Save report after each scan checkbox.
Teller Settings
In order to create the correctly structured XML file, you must fill out a few details about your File Room, Cabinet, Institution and the Document Type.

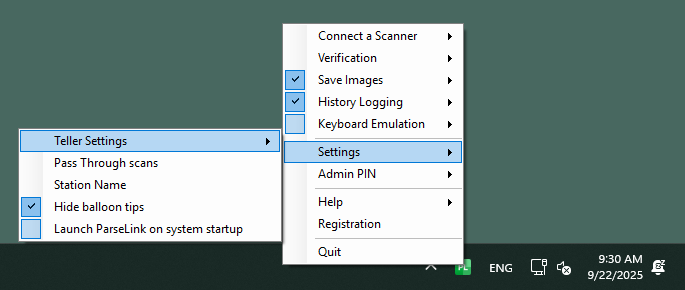

- Go to Right Click Menu > Settings > Teller Settings

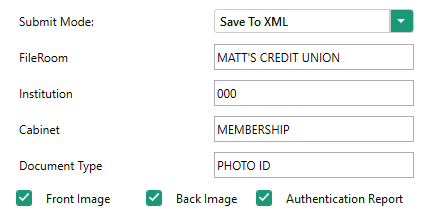

Fill out the following fields with the appropriate information.
- Set Submit Mode to Save To XML
- Set File Room to the name of your file room (usually all caps)
- Set Institution to your 3-digit institution number
- Set Cabinet to the name of your cabinet (usually all caps)
- Set Document Type to PHOTO ID
You can ignore the rest of the settings on this menu.
Scanning IDs with XML
Now that your app is configured to work with Send to XML enabled, you can start scanning. To learn more about this process, read this article on the Teller XML Workflow.
